Cell Thawing Systems

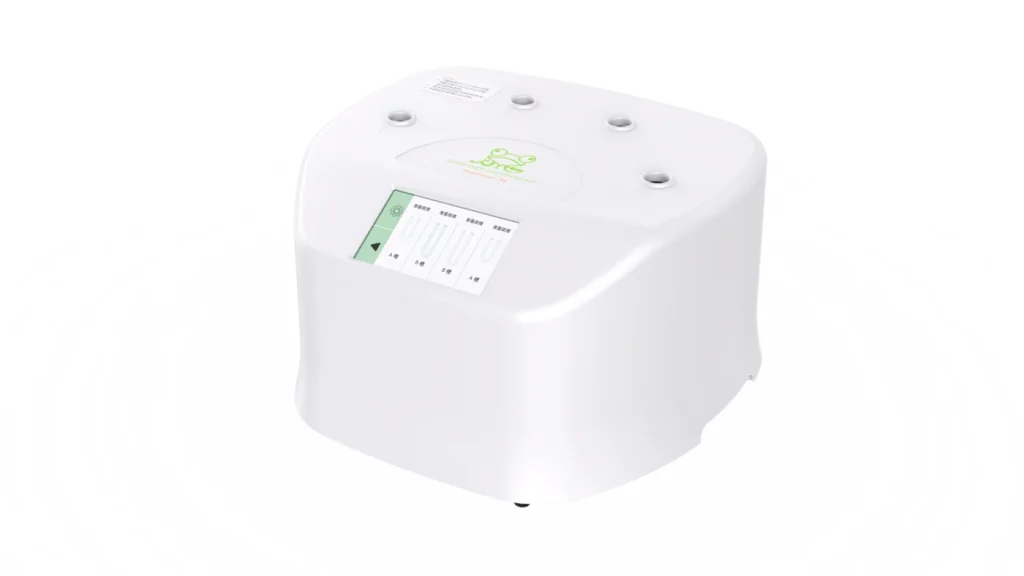

ThawHome Tube Thawing Unit
ThawHome (Tube, A/B slots)
Simple, high-throughput benchtop thawing for 1.5-5 ml tubes: A and B slots run on independent timers, no login required.
ThawHome Tube is the practical choice when a lab wants dry thawing without an account system. Power on, insert, go. Slot A handles 1.5-2.0 ml tubes, slot B handles 4.0-5.0 ml tubes, each with its own timer.
Error codes E1-E7 are shown directly on screen, and the unit alarms if a finished sample is left in the slot, protecting the rest of the batch from a forgotten tube.
- No login system - switch on and use; interface selectable Chinese / English
- Slot A 1.5-2.0 ml in 2-3 minutes, slot B 4.0-5.0 ml in 3-5 minutes
- Pre-heat roughly 6-10 minutes before the first run
- Sample must be below -10 C at insertion (E1 otherwise)
- On-screen diagnostics E1-E7 including ejection fault
- Compact 296 x 270 x 170 mm body, max 120 W
Specifications
| Container |
1.5-2.0 ml (slot A), 4.0-5.0 ml (slot B) cryotubes |
| Thaw time |
A 2-3 min / B 3-5 min |
| Access control |
None (open access) |
| Pre-heat |
6-10 min |
| Diagnostics |
E1-E7 shown on display |
| Power |
Max 120 W, DC 12 V / 15 A |
| Dimensions |
296 x 270 x 170 mm |
| Environment |
5-35 C, humidity <=75%, storage -20-60 C, max altitude 2 km |
| Warranty |
12 months standard, extendable |
