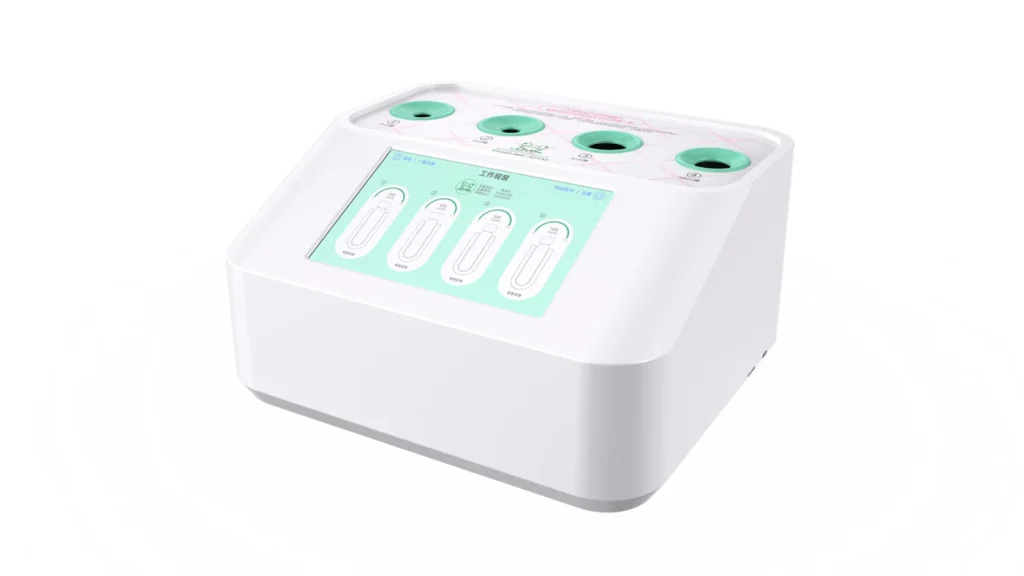

ThawLINE Tube Cell Thawing System

ThawLINE

Four-channel dry thawing for 1.5-5 ml cryotubes with two-level permissions and exportable, tamper-proof thaw records.

ThawLINE thaws cryopreserved samples without a water bath. Vials go straight from liquid nitrogen or dry ice into one of four independent heated channels; the instrument drives the sample through the critical temperature window and ejects it when the target is reached.

Because every run is logged, ThawLINE fits labs that need traceability: administrators set the protocol, operators run samples, and the PC software exports an unmodifiable temperature-curve image for the batch record.

• Water-free dry heat transfer - no shared water bath, no wet labels, no cross-contamination
• Four independent channels: thaw different samples in parallel
• 2-8 minutes per run depending on container and target parameters
• Adjustable ice-crystal target; 5%-15% residual ice is the recommended band per manual
• Temperature guard configurable from -40 C to 0 C; run is refused if the sample is above the set limit
• Two-level accounts (administrator / operator) with lockout after repeated wrong passwords
• Data on SD card plus PC export of uneditable thaw-curve images
• One-touch ozone sanitising, 30 seconds
• Optional custom ports for vials and bottles
